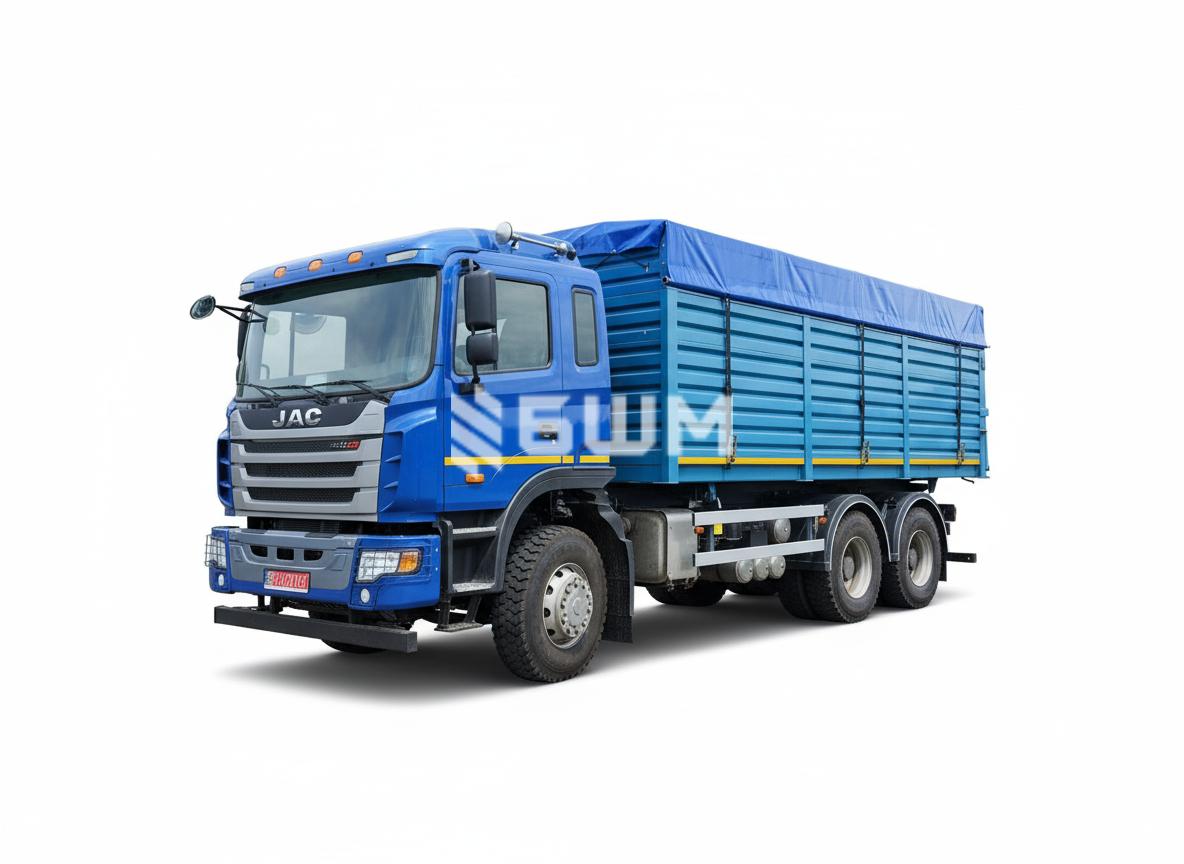

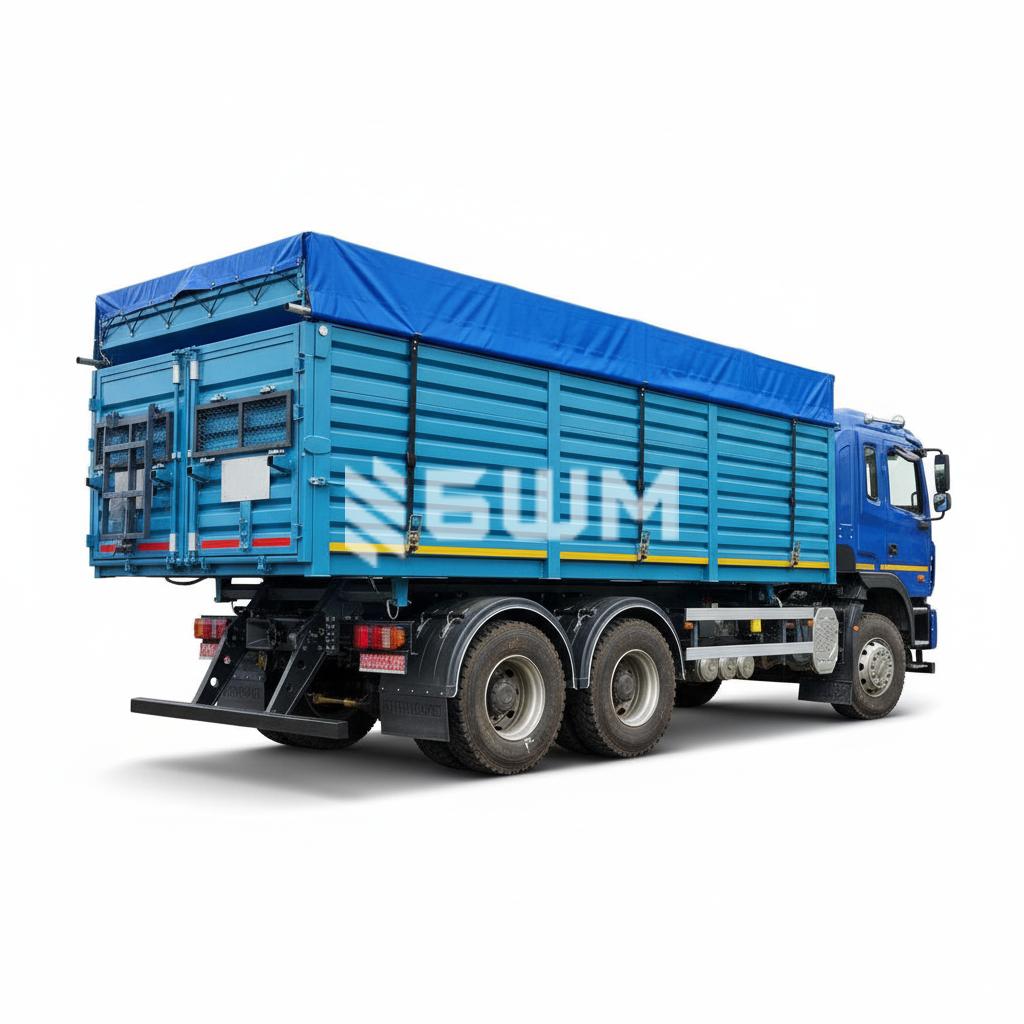

The JAC N350 grain dump truck is a powerful and durable vehicle designed for transporting grain, oilseeds, and bulk materials. It combines high payload capacity, a modern Weichai diesel engine, and a robust body structure, making it a versatile solution for both the agricultural and construction sectors.

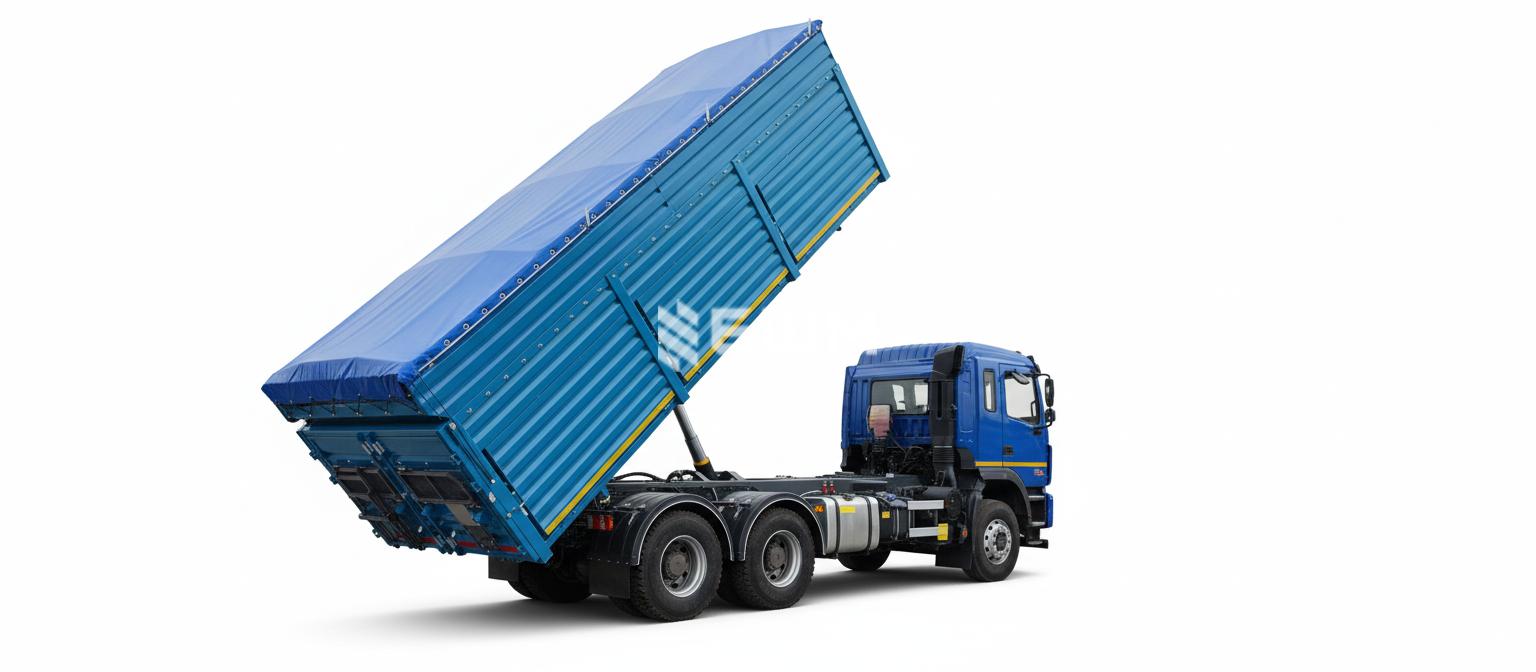

The body measures 6100×2450×1870 mm with a total volume of 28 m³, allowing for efficient transport of large loads. It features rear and right-side unloading, providing convenience under various working conditions. The side walls are 2 mm thick, while the floor is 3 mm, ensuring strength and durability. For ease of operation, the body is equipped with a material dispenser, a service platform for the tarp, and aluminum side guards. Both the tarp and body color can be customized to the customer’s preference.

Power is provided by a Weichai WP10.350E53 (Euro-5) diesel engine with a displacement of 9.7 L and an output of 343 HP. The maximum torque is 1600 Nm within the range of 1200–1600 rpm, delivering excellent traction even under full load. The engine is paired with a 12-speed manual transmission (12JSD180T), ensuring optimal power delivery.

The chassis payload capacity is 24,413 kg, and the gross vehicle weight reaches 35,000 kg. The 6×4 wheel configuration provides stability and reliability when transporting heavy loads. The suspension is dependent, spring-based, equipped with hydraulic shock absorbers and anti-roll stabilizers.

The braking system features a dual-circuit pneumatic drive, ABS, ESC, and ASR ESP for high operational safety. Additionally, an engine retarder is installed for safer operation on slopes. The top speed is limited to 80 km/h, matching the requirements of agricultural and construction applications.

The vehicle is equipped with a 400-liter fuel tank, allowing long-distance operation without refueling. The standard configuration includes an air conditioner, pneumatic driver’s seat, power windows, heated side mirrors, central locking with remote control, LED daytime running lights, fog lamps, and a multimedia system supporting MP3/USB/Bluetooth.

The JAC N350 grain dump truck is a reliable solution for agricultural enterprises and construction companies, combining power, capacity, and functionality to ensure efficiency in everyday operations.
