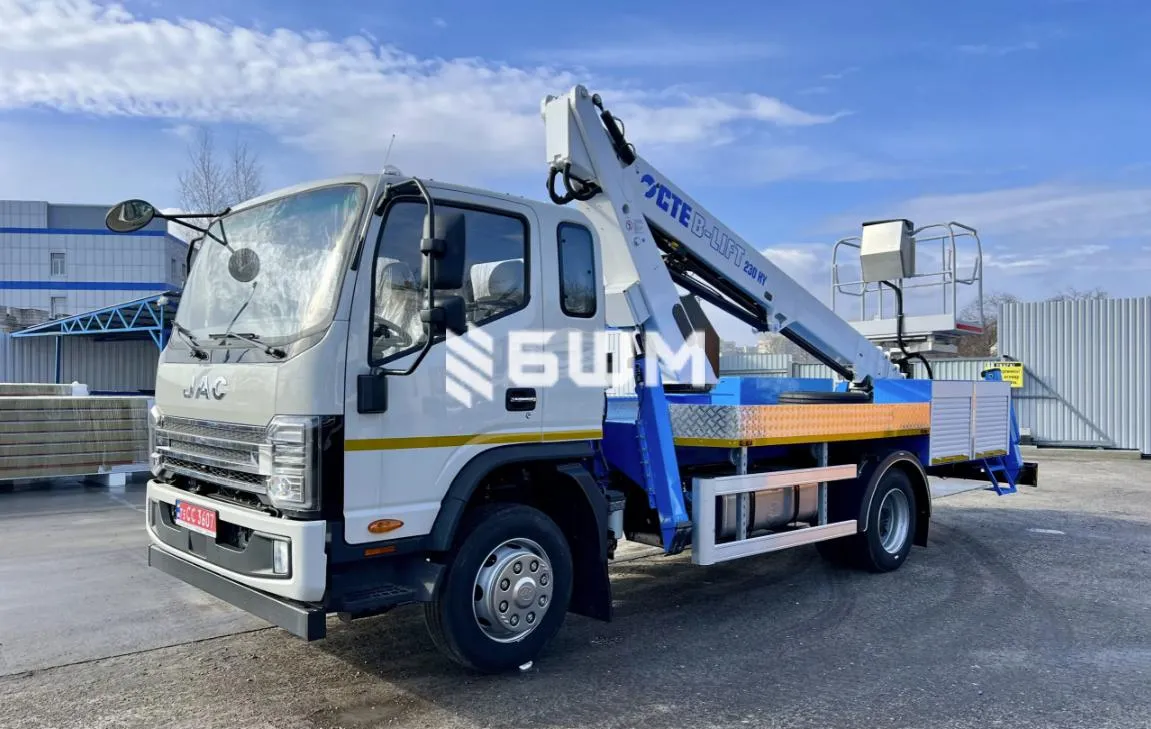

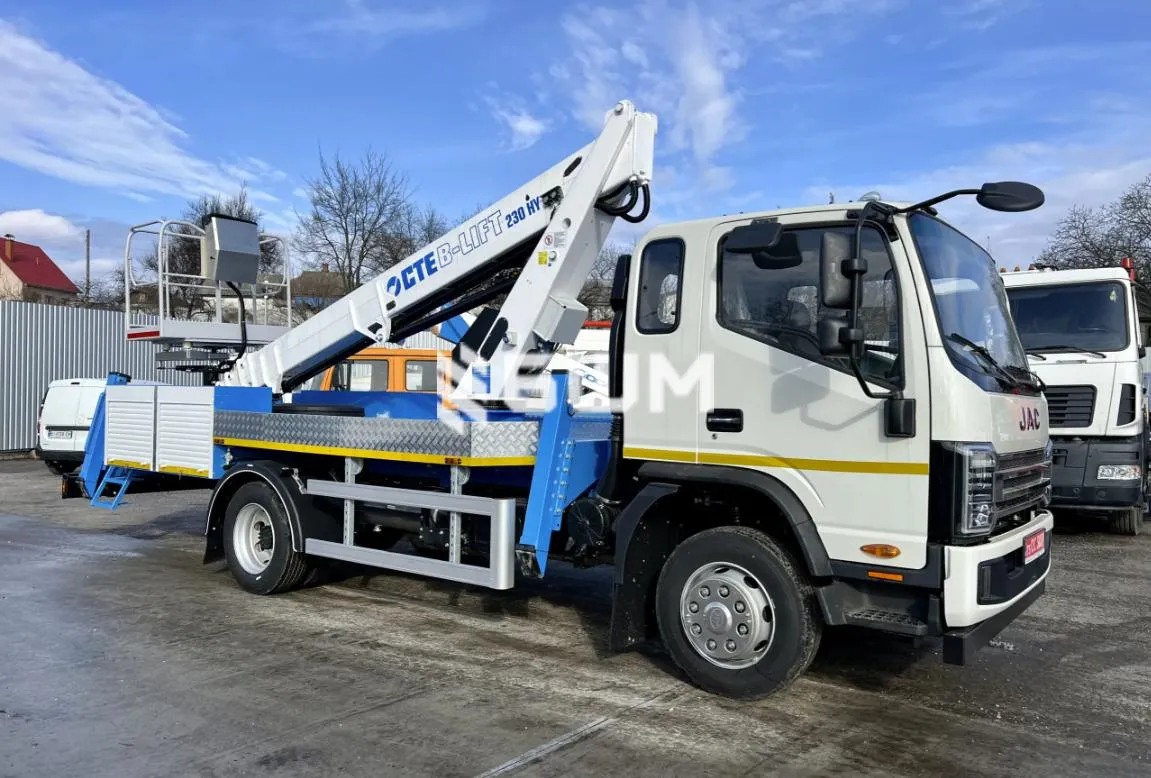

The CTE B-LIFT 230 aerial platform mounted on a JAC N120 chassis combines power, safety, and precision for high-altitude operations.

The Italian-made telescopic hydraulic lift CTE B-LIFT 230 on the JAC N120 chassis is the optimal choice for performing elevated work in construction, energy, installation, municipal services, and infrastructure maintenance. The combination of CTE’s robust design with the reliable JAC N120 chassis ensures durability, maneuverability, and high performance.

Main technical specifications:

• Working height: up to 22.5 m

• Horizontal outreach / load capacity:

  • 6.5 m / 300 kg

  • 7.2 m / 250 kg

  • 11.3 m / 80 kg

• Boom rotation: 360°

• Basket rotation: 60° + 60°

• Basket dimensions: 1400 × 700 × 1100 mm

Why choose the CTE B-LIFT 230 on the JAC N120 chassis:

• Maximum working height of up to 22.5 m — ideal for high-elevation tasks

• Double electrical insulation up to 1000 V — safety when working near power lines

• High load capacity at various outreach points — operational versatility

• 360° boom rotation and 60° + 60° basket rotation — easy and precise positioning

• Strong yet lightweight STRENX steel structure — durability and easy mounting on the chassis

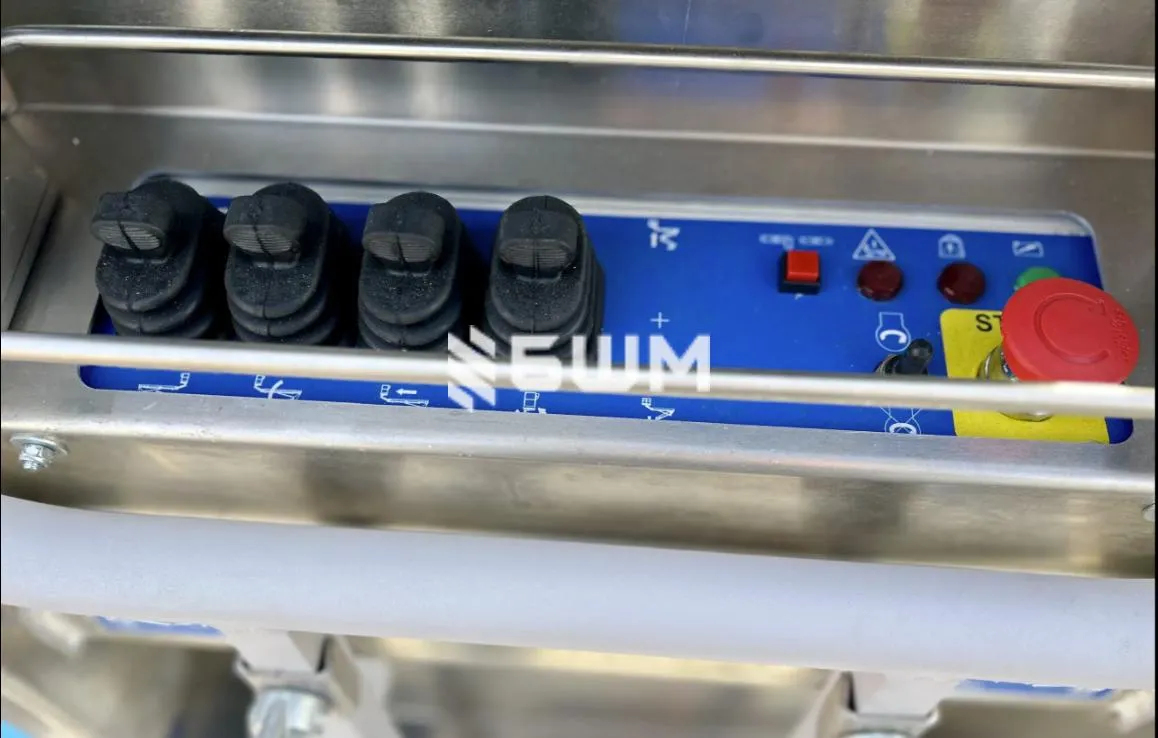

• Comprehensive safety equipment and emergency controls — operator confidence and efficiency

If you are looking for a reliable aerial platform or hydraulic lift in Ukraine, the CTE B-LIFT 230 on the JAC N120 chassis from Budshlyakhmash is an excellent choice for your business or municipal organization.
